Walraven Maxx profile system
Walraven Maxx profile is a modular steelwork support system for the construction of heavy duty, load bearing frames which can be used for a wide range of applications.
Strong and easy to use
The profiles are available in different dimensions and are made with a closed square profile which offers a strong, reliable and safe solution. The system is designed with a number of accessories for easy construction at the building site.
Walraven Maxx profile is also compatible with most components of the Walraven RapidStrut® medium channel system, so that smaller pipe work can also be installed in an efficient way as part of the same system.
Complete solution
The heavy duty system is a great alternative to welding and drilling structural steel systems and the use of high quality hot dipped galvanised steel components means Walraven Maxx profile is perfectly suited to indoor and outdoor applications.
Features & Benefits
- Quick to install and easy to handle
- High torsional rigidity
- 3D-installation
- Easy adjustments, highly versatile
- Indoor and outdoor use
Click here for an overview of all our Walraven Maxx profile products
Back to heavy fixing solutions
Walraven Maxx profile product selection

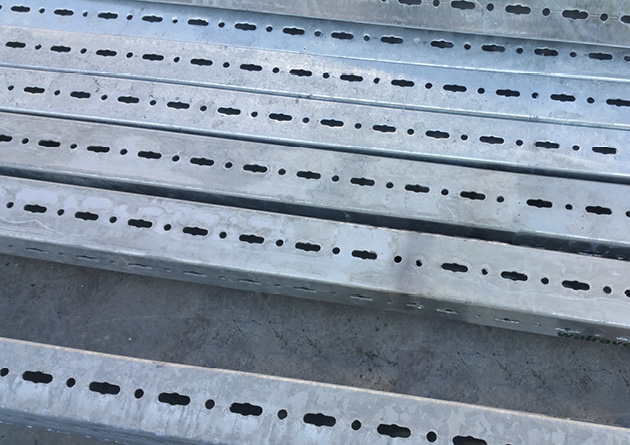

Walraven Maxx Heavy Rail Profile
- closed square profile
- for heavy loads
- torsion stiffness for high safety
Walraven Maxx Base Plate
- U-saddle welded on large base plate
- for connecting Maxx profiles to wall, floor or ceiling
- slots are compatible with mounting profiles
Walraven Maxx Hammerfix
- form-locking connector
- retains assembly in place before final tightening
- pre-assembled and ready to use for a quick fixing in profile perforation by a push and 90° turn
Walraven Maxx Linear Connector
- for linear connection of Maxx profiles type MX80
- advised to be used with min. 8 Maxx Hammerfix
- U-shape gives the opportunity to create one flat surface (for example to install big units on top of the Maxx profile)
