Excellent corrosion protection
Walraven BIS UltraProtect® 1000 is a unique support system that is suitable for indoor and outdoor use. Unique in terms of scope, composition and corrosion resistance, making it the most sustainable solution for fixing or supporting mechanical installations, solar systems and other types of installations. With the Walraven BIS UltraProtect® 1000 system, Walraven has obtained a leading position in the field of pipe fixing solutions!
Download our white paper
Learn more about the the short and long-term behaviour of the BUP (Walraven BIS UltraProtect® 1000) surface treatment
The benefits of Walraven BIS UltraProtect® 1000:
- Extensive fixing system for indoor and outdoor applications;
- Suitable for corrosive environments (C1–C4 in accordance with ISO 12944-2);
- All applied surface treatments effortlessly withstand a salt spray test of at least 1000 hours (until the occurrence of maximum 5% red rust);
- The best alternative for hot dip galvanizing;
The alternative for hot dip galvanizing

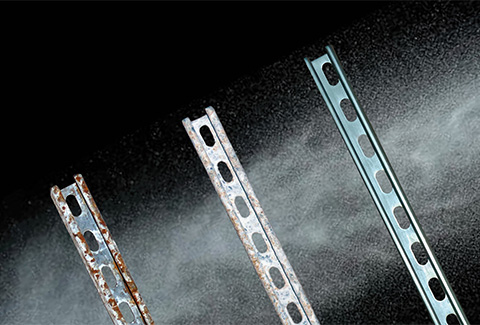

The products falling under the Walraven BIS UltraProtect® 1000 system have a high corrosion resistance. Effortlessly they withstand a salt spray test of at least 1000 hours (according to ISO 9227), where hot dip galvanized products withstand up to 300-600 hours).
Despite a relatively thin protective layer, the corrosion resistance is high. The products from the Walraven BIS UltraProtect® 1000 system not only feel smooth and have a beautiful finish, they also look optically attractive. An additional advantage of the relatively thin protective layer is that products with threaded holes or rod are also well protected against corrosion.
Extensive range
The Walraven BIS UltraProtect® 1000 system includes products for fixing pipes, air ducts, as well as various products for making load-bearing rail constructions such as solar panels and air-conditioning systems. As various Walraven BIS RapidStrut® products are included in the system, speed and ease of installation are guaranteed!
Read more about our Walraven BIS UltraProtect® 1000 products
Walraven RapidStrut® Channel (BUP1000)
- universal rail system
- corrosion protection remains intact after cutting
- distance between rail end and first hole is always equal
Walraven RapidStrut® Hammerfix G2 (BUP1000)
- slide nut with stud bolt, washer and BIS RapidStrut® spring
- ready-to-use pre-assembled for a quick fixing, and retains assembly in place before final tightening
- material: metal parts made of steel 1.0332; spring(s) made of POM (polyoxymethylene), green
Bifix® 5000 G2 (BUP1000)
- two-screw clamp
- with quick locking system
- removable spacer washers allow the sliding or gripping of the pipe within the clamp
Walraven Stud Bolt (BUP1000)
- according to DIN 976-1
- material: steel
- material: threaded rods / bolts M12 class 8.8
Walraven RapidStrut® Base Plate G2 (BUP1000)
- flexible base plate for Strut rails
- suitable for all Strut rail up to 82mm height
- open side of rails 41x41 can be turned to all sides
BIS Hexagon Nut (BUP1000)
- material: steel
- surface protection:
- tested for fire safety
BIS Expansion Device (BUP1000)
- single support for pipe expansion
- secure parts ensure mechanism will not slide out
- fix directly on the building structure or in combination with rail systems
