Medium Duty Clamps
Walraven’s 2-Screw clamps provide fast and reliable solutions to hold medium load pipes, either with or without load-bearing insulation.
Bifix® G2 – strong, versatile and suitable for outdoor use
Bifix® G2 is a unique and premium line of clamps covering all types of pipe fixing solutions, both in- and outdoors. The range consists of both lined and unlined clamps for steel, copper and multilayer pipes, Ø 10 – 225 mm. The two component EPDM lining improves the product’s ease of installation as well as the noise reduction properties (DIN 4109). Strength wise the Bifix® G2 holds medium to high loads, in accordance with both RAL GZ-655 and RAL GZ-656 under fire conditions.
Bifix® 5000 G2 – for plastic pipe
The Bifix® 5000 G2 is specifically designed for PE pipes and allows either fixing or sliding to handle the pipe expansion. It can be used both in and outdoors on pipes Ø 16 – 200 mm. Strength wise the Bifix® 5000 G2 holds medium to high loads, in accordance with both RAL GZ-655 and RAL GZ-656 under fire conditions.
2S – Standard pipe clamp, gapless range
With the zinc plated 2S Walraven offers a standard clamp to fix steel, copper and multilayer pipes Ø 10 mm up to and including Ø 225 mm. The gapless range, available both with and without rubber lining, has an optimised steel design and provides a solution for every light/medium load in accordance with RAL GZ-655.
Back to medium fixing solutions
Medium Duty Clamp selection:
Bifix® G2 (M8/10) (BUP1000)
- two-screw clamp
- with quick locking system
- perfect solution for pipe supports, also for outdoor installations
Bifix® 5000 G2 (BUP1000)
- two-screw clamp
- with quick locking system
- removable spacer washers allow the sliding or gripping of the pipe within the clamp

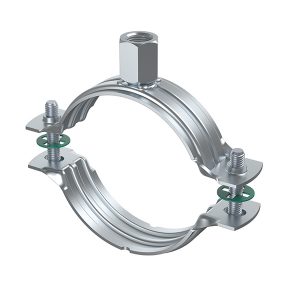

2S Clamp (M8/10)
- gapless range
- anti loss washers prevent screws from falling out during installation
- perfect solution for insulated pipe supports
