Light Duty Clamps
Walraven’s single screw and 2-Screw clamps provide fast and reliable solutions to hold light to medium load pipes, that are either insulated or uninsulated.
BISMAT® Flash – Easy to close with one hand
The BISMAT® Flash is a single screw, zinc plated pipe clamp with quick locking system. The locking screw can be secured by one simple thumb push, no tools required. As the locking screw is manually closed, there is minimal rubber compression: this results in better absorption of noise and vibration. The BISMAT® Flash is suitable for fixing all types of metal pipes Ø 15 mm up to and including 63 mm.
2S – Standard pipe clamp, gapless range
With the zinc plated 2S Walraven offers a standard clamp to fix steel, copper and multilayer pipes Ø 10 mm up to and including Ø 225 mm. The gapless range, available both with and without rubber lining, has an optimised steel design and provides a solution for every light/medium load in accordance with RAL GZ-655.
Back to light fixing solutionsLight duty clamp selection:
BISMAT® Flash
- single screw clamp
- with BISMAT® Flash quick locking system
- clamp easy to close with one hand

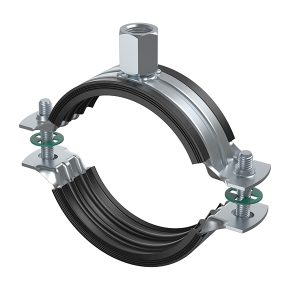

2S Clamp with Lining (M8/10)
- gapless range
- rubber lining grips in steel parts to prevent sliding of the lining
- anti loss washers prevent screws from falling out during installation

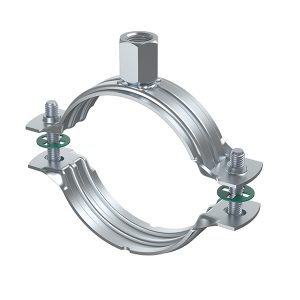

2S Clamp (M8/10)
- gapless range
- anti loss washers prevent screws from falling out during installation
- perfect solution for insulated pipe supports
