Don’t use any channel, choose Walraven RapidStrut
There are plenty of strut channel solutions on the market, but Walraven RapidStrut is different. If you’re looking to elevate your installations, take a look at our precision engineered channel system with a whole range of advanced features putting it a cut above other channel products on the market.
Walraven RapidStrut is made in our own factories to advanced quality standards and offers the following key features and benefits over standard channel:
- Precision engineering
- Advanced installation features to make construction quicker and easier
- Fire tested system – fire rated configurations can be provided
- Load tested system for your peace of mind. View load tables.
- Designed with sustainability in mind – including EPD available
- Advanced anti-corrosion options available
- Third party quality and safety endorsements through ETA and RAL
- In house technical support and designs offered
- Ready to specify on NBS Source
You can read more about some of these special features in the sections below.
Build for the future with Walraven RapidStrut®
“Proven performance with sustainable credentials, Walraven RapidStrut is the channel system you can trust”

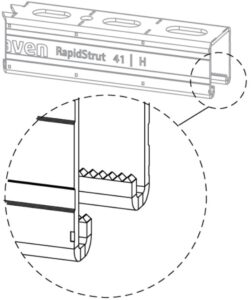

Precision engineering
Walraven RapidStrut is designed and manufactured to ensure the highest engineered quality for our customers…
- Rigid design: The channel’s profile maintains a rigid structure that doesn’t easily bend under load or when cut.
- Consistent dimensions: Uniform channel dimensions ensure compatibility with fittings.
- Precision-cut holes and slots allow secure attachment and easy alignment.
- Serrated profile on inner flanges provides extra grip
- Distance between rail end and first hole is always equal
- Designated fixing holes for easy anchoring
Advanced installation features
We know how important speed and efficiency is on the job site, so we thought of all the ways we could make the installation process easier!
- Fast-fit, pre-assembled fixings and connectors can save up to 40% fixing time on site
- Simple ‘twist and tighten’ technology applied to channel connectors as well as slide nuts and hammerfix for fast assembly
- Specific 8.5mm fixing holes designed for concrete screws
- Easy to put together, line up and adjust if required
- Cutting marks provided every 50mm on all 3 sides of the profile
How to install a fire tested system correctly
It’s a common misconception that you can install products that have been fire tested, in any configuration, and that the resulting installation will therefore be fire rated. This is not the case.
To achieve a fire rated installation, the products MUST be installed in a configuration that has been fire tested by the manufacturer. This is because the way the products are installed will influence their ability to withstand the fire. For example, if additional loads are added, exceeding what was tested for, then the installation is likely to fail sooner than indicated in the test.
Always refer to manufacturer guidelines and fire test reports BEFORE you begin installing, to ensure your configuration meets the test criteria for a fire rating.
The Walraven RapidStrut fire test report can be found here. You can also consult our Technical Team for advice on this before you begin installation.
Sustainability important on your project?
An EPD provides comprehensive details on the environmental impact of our product, empowering our customers to make more informed and eco-conscious choices. Follow the link below to find out more about our EPDs.
Advanced anti-corrosion treatment
Walraven RapidStrut channel is available in multiple finishes including:
- Pre-galv
- Walraven BIS UltraProtect® 1000 (BUP1000)
- Stainless steel
The BUP1000 finish is our standard alternative to HDG channel. This unique finish was developed to offer a better corrosion resistance than HDG. Whilst HDG channel will last up to 600hrs salt spray test, Walraven’s BUP 1000 channel withstands a salt spray test of at least 1000 hours.
This makes Walraven RapidStrut (BUP 1000) suitable for C1-C4 environments. Find out more about BUP1000.
Have a question about Walraven RapidStrut®?
Complete the form to get in touch
Or to purchase, contact Trentside Fixings – our largest stockist, call 0115 985 1551
A selection of Walraven RapidStrut articles, browse the full range in our online product catalogue
Walraven RapidStrut® Channel (pg)
- universal rail system
- distance between rail end and first hole is always equal
- inward formed flanges with serrated profile for extra grip
Walraven RapidStrut® Cantilever Arm (BUP1000)
- base plate with welded RapidStrut® Profile
- for quick and adjustable fixing of one or multiple pipes
- CO
2 welded
Walraven RapidStrut® Hammerfix G2 (BUP1000)
- slide nut with stud bolt, washer and BIS RapidStrut® spring
- ready-to-use pre-assembled for a quick fixing, and retains assembly in place before final tightening
- material: metal parts made of steel 1.0332; spring(s) made of POM (polyoxymethylene), green
Walraven RapidStrut® Rail Connector 90° G2 (BUP1000)
- connector with pre-assembled BIS RapidStrut® Slide nut(s)
- to make fabrication with Strut Rail
- ready-to-use pre-assembled for a quick fixing, and retains assembly in place before final tightening
