Strong, efficient and versatile solution
The use of heavy-duty modular steel systems like Walraven Maxx as M&E supports is growing in the building services sector. This is because modular systems have many benefits over traditional welded steelwork constructions. They can help contractors deliver projects quicker, easier, safer and to a high standard whilst also minimising waste.
Here are some of the benefits of using a modular steelwork solution over welded steelwork:
- Reduced installation time
- Cost-effective solution
- Adjustable system
- Wide range of applications possible
- Inter-connectable to primary steelwork
- Safe and strong box profile
- Suitable for non-penetrative roof designs
- Improved health and safety on site
- Can be prefabricated offsite
- HDG parts offer corrosion protection
Here you can view load tables and technical data.
View Walraven Maxx product brochure
Request a call to discuss Walraven Maxx

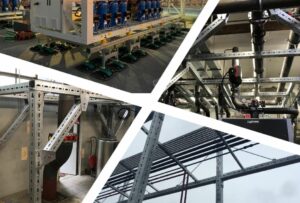

When to use Walraven Maxx frame for M&E installations
Find out how modular steel frame systems like Walraven Maxx can be used for M&E installations.
How Walraven Maxx can help you reduce installation time
Walraven’s Walraven Maxx system is designed for fast and efficient 3D construction.
10 benefits of using Walraven Maxx for heavy-duty installations
Deliver projects quicker, easier and safer as well as minimise waste.
New and improved system
Our Walraven Maxx system has recently undergone some small changes to make it even easier to construct, and to enhance its performance. The enhancements include:
- New Hammerfix bolt connector for quick connections
- New Maxx Wingnut for easy connection of clamps
- All parts now HDG for corrosion protection
- Improved hole pattern design
- Improved base plate design
- Simplified system
- BIM objects
See just how easy the Walraven Maxx system is to construct using our special Walraven Hammerfix bolts in these assembly videos:
Cross Connector Assembly
U Gate Assembly
Linear Assembly

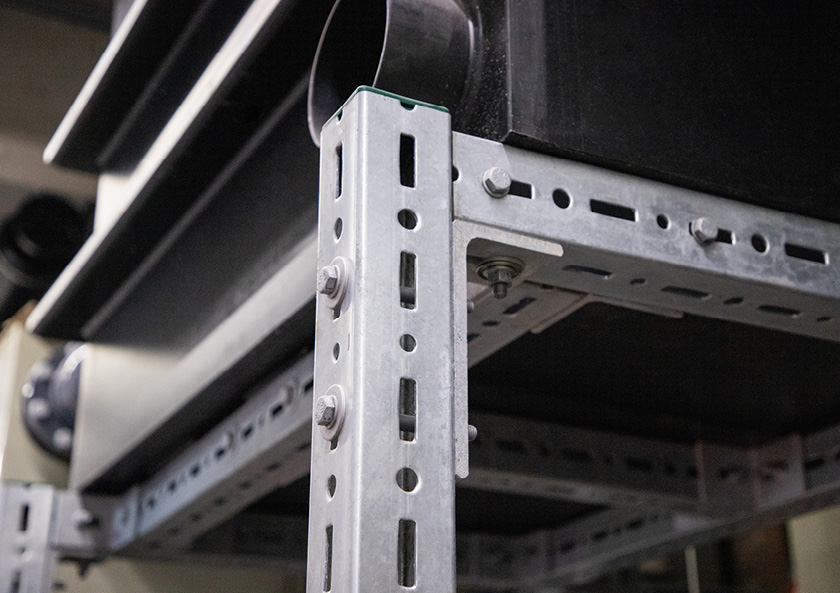

Walraven Maxx Heavy Rail Profile
- closed square profile
- for heavy loads
- torsion stiffness for high safety
Walraven Maxx Hammerfix
- form-locking connector
- retains assembly in place before final tightening
- pre-assembled and ready to use for a quick fixing in profile perforation by a push and 90° turn
Walraven Maxx Base Plate
- U-saddle welded on large base plate
- for connecting Maxx profiles to wall, floor or ceiling
- slots are compatible with mounting profiles
Walraven Maxx U-Shape Bracket
- U-shaped for extra stability
- when tightening directly onto Maxx profiles, it is strongly advised to use Maxx U-shape brackets
- advised to use when hanging profiles from the ceiling
