Walraven Medium Duty Clamps
Walraven’s Bifix 2-Screw clamps provide fast and reliable solutions to hold medium load pipes, either with or without phenolic load-bearing insulation.

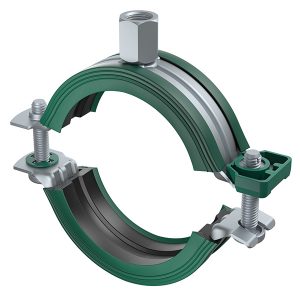

Walraven Bifix® G2 – strong, versatile and fast to install
Walraven Bifix® G2 is a unique and premium line of clamps covering all types of pipe fixing solutions, both in and outdoors. The range consists of both lined and unlined clamps for steel, copper and multilayer pipes, Ø 10 – 225 mm.
The two component EPDM lining improves the product’s ease of installation as well as effective noise reduction properties (DIN 4109). Strength wise the Walraven Bifix® G2 holds medium to high loads, in accordance with both RAL GZ-655 and RAL GZ-656 under fire conditions.

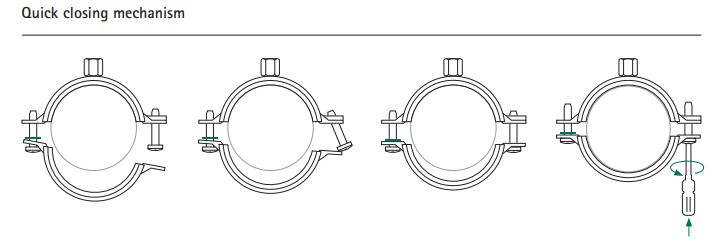

The added benefit of the captive screw makes installation fast and effective.

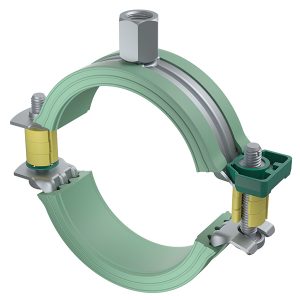

Walraven Bifix® 5000 G2 – for plastic pipe
The Walraven Bifix® 5000 G2 is specifically designed for PE pipes and allows either fixing or sliding to handle the pipe expansion. It can be used both in and outdoors on pipes Ø 16 – 200 mm. Strength wise the Walraven Bifix® 5000 G2 holds medium to high loads, in accordance with both RAL GZ-655 and RAL GZ-656 under fire conditions.
Walraven Medium Duty Clamp selection:

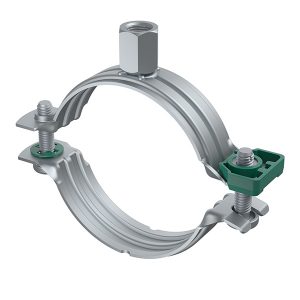

Bifix® G2 (M8/10) (BUP1000)
- two-screw clamp
- with quick locking system
- perfect solution for pipe supports, also for outdoor installations
Bifix® G2 with Lining (M8/10) (BUP1000)
- two-screw clamp
- quick closing mechanism for easy locking of the clamp with one hand
- 2 component rubber lining provides easy positioning of the pipe during installation
Bifix® 5000 G2 (BUP1000)
- two-screw clamp
- with quick locking system
- removable spacer washers allow the sliding or gripping of the pipe within the clamp
Bifix® G2 with Lining (M10) (BUP1000)
- two-screw clamp
- quick closing mechanism for easy locking of the clamp with one hand
- 2 component rubber lining provides easy positioning of the pipe during installation
