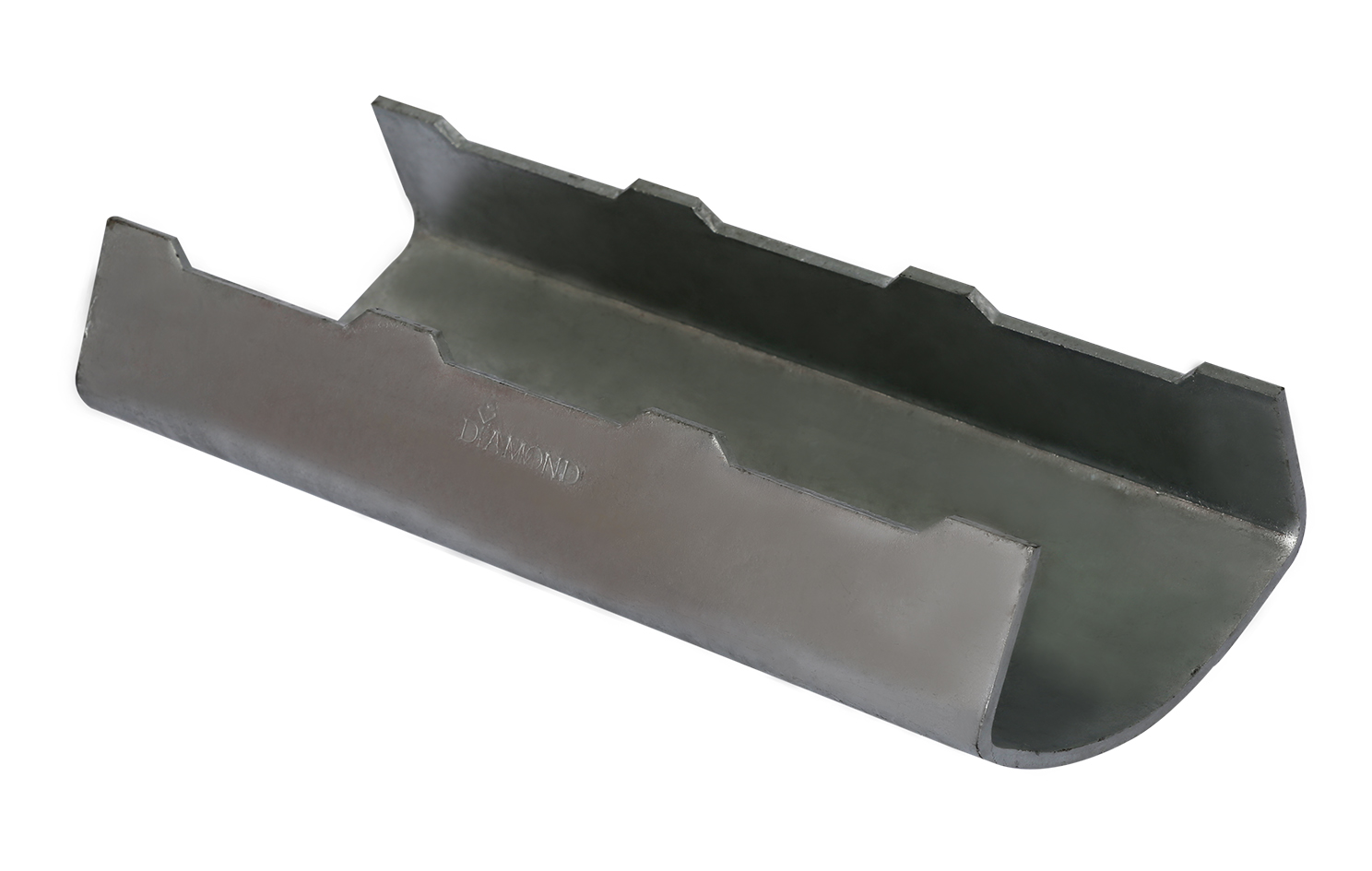

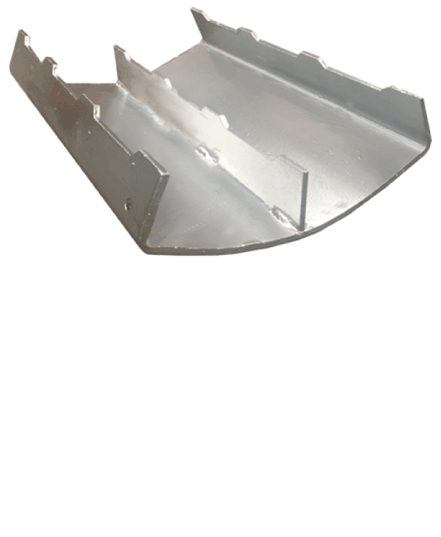

Pipe Covering Protection Saddle

Features & benefits

recommended to be used with insulated pipes
protects the pipe insulation over pipe lines
length: 300 mm
material: steel
electrogalvanized as per ASTM B 633 Standards (SC3)
designed to meet MSS Standard SP-58, SP-69, type 39A and 39B

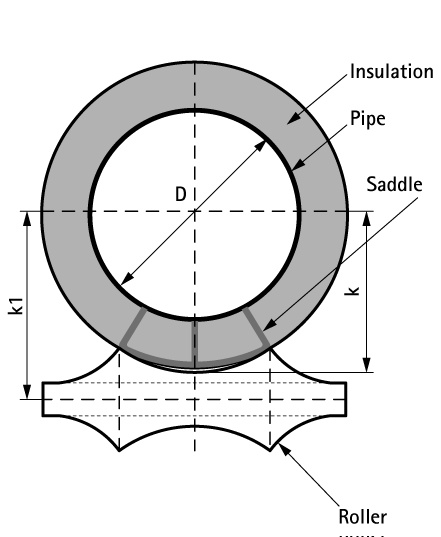

Part No.	D (mm)	D (")	k (mm)	k1 (mm)	Insulation Thickness (mm)	Matching Roller Chair	Fa,z (N)	Fa,z (kg)	Pack 1	Pack 2	App.	Product wish list
Part No.DMPPS25-25	D (mm)33.4	D (")1	k (mm)47	k1 (mm)62	Insulation Thickness (mm)25	Matching Roller ChairDMC166090	Fa,z (N)3,500	Fa,z (kg)350	-	-	App.pc.	Product wish list
Part No.DMPPS25-50	D (mm)33.4	D (")1	k (mm)73	k1 (mm)62	Insulation Thickness (mm)50	Matching Roller ChairDMC166140	Fa,z (N)3,500	Fa,z (kg)350	-	-	App.pc.	Product wish list
Part No.DMPPS32-25	D (mm)42.0	D (")1¼	k (mm)50	k1 (mm)64	Insulation Thickness (mm)25	Matching Roller ChairDMC166090	Fa,z (N)3,500	Fa,z (kg)350	-	-	App.pc.	Product wish list
Part No.DMPPS32-50	D (mm)42.0	D (")1¼	k (mm)76	k1 (mm)70	Insulation Thickness (mm)50	Matching Roller ChairDMC166140	Fa,z (N)3,500	Fa,z (kg)350	-	-	App.pc.	Product wish list
Part No.DMPPS40-25	D (mm)48.0	D (")1½	k (mm)54	k1 (mm)72	Insulation Thickness (mm)25	Matching Roller ChairDMC166090	Fa,z (N)3,500	Fa,z (kg)350	-	-	App.pc.	Product wish list
Part No.DMPPS40-50	D (mm)48.0	D (")1½	k (mm)80	k1 (mm)102	Insulation Thickness (mm)50	Matching Roller ChairDMC166140	Fa,z (N)3,500	Fa,z (kg)350	-	-	App.pc.	Product wish list
Part No.DMPPS50-25	D (mm)60.0	D (")2	k (mm)60	k1 (mm)80	Insulation Thickness (mm)25	Matching Roller ChairDMC166115	Fa,z (N)3,500	Fa,z (kg)350	-	-	App.pc.	Product wish list
Part No.DMPPS50-50	D (mm)60.0	D (")2	k (mm)86	k1 (mm)111	Insulation Thickness (mm)50	Matching Roller ChairDMC166168	Fa,z (N)3,500	Fa,z (kg)350	-	-	App.pc.	Product wish list
Part No.DMPPS50-75	D (mm)60.0	D (")2	k (mm)111	k1 (mm)141	Insulation Thickness (mm)75	Matching Roller ChairDMC166219	Fa,z (N)3,500	Fa,z (kg)350	-	-	App.pc.	Product wish list
Part No.DMPPS65-25	D (mm)73.0	D (")2½	k (mm)68	k1 (mm)90	Insulation Thickness (mm)25	Matching Roller ChairDMC166140	Fa,z (N)6,000	Fa,z (kg)600	-	-	App.pc.	Product wish list
Part No.DMPPS65-50	D (mm)73.0	D (")2½	k (mm)98	k1 (mm)126	Insulation Thickness (mm)50	Matching Roller ChairDMC166175	Fa,z (N)6,000	Fa,z (kg)600	-	-	App.pc.	Product wish list
Part No.DMPPS65-75	D (mm)73.0	D (")2½	k (mm)119	k1 (mm)149	Insulation Thickness (mm)75	Matching Roller ChairDMC166220	Fa,z (N)6,000	Fa,z (kg)600	-	-	App.pc.	Product wish list
Part No.DMPPS75-25	D (mm)90.0	D (")3	k (mm)77	k1 (mm)99	Insulation Thickness (mm)25	Matching Roller ChairDMC166140	Fa,z (N)6,000	Fa,z (kg)600	-	-	App.pc.	Product wish list
Part No.DMPPS75-50	D (mm)90.0	D (")3	k (mm)103	k1 (mm)131	Insulation Thickness (mm)50	Matching Roller ChairDMC166175	Fa,z (N)6,000	Fa,z (kg)600	-	-	App.pc.	Product wish list
Part No.DMPPS75-75	D (mm)90.0	D (")3	k (mm)128	k1 (mm)164	Insulation Thickness (mm)75	Matching Roller ChairDMC166273	Fa,z (N)6,000	Fa,z (kg)600	-	-	App.pc.	Product wish list
Part No.DMPPS100-25	D (mm)115.0	D (")4	k (mm)89	k1 (mm)114	Insulation Thickness (mm)25	Matching Roller ChairDMC166168	Fa,z (N)6,000	Fa,z (kg)600	-	-	App.pc.	Product wish list
Part No.DMPPS100-50	D (mm)115.0	D (")4	k (mm)115	k1 (mm)145	Insulation Thickness (mm)50	Matching Roller ChairDMC166219	Fa,z (N)6,000	Fa,z (kg)600	-	-	App.pc.	Product wish list
Part No.DMPPS100-75	D (mm)115.0	D (")4	k (mm)140	k1 (mm)176	Insulation Thickness (mm)75	Matching Roller ChairDMC166273	Fa,z (N)6,000	Fa,z (kg)600	-	-	App.pc.	Product wish list
Part No.DMPPS125-25	D (mm)140.0	D (")5	k (mm)103	k1 (mm)131	Insulation Thickness (mm)25	Matching Roller ChairDMC166193	Fa,z (N)9,500	Fa,z (kg)950	-	-	App.pc.	Product wish list
Part No.DMPPS125-50	D (mm)140.0	D (")5	k (mm)129	k1 (mm)165	Insulation Thickness (mm)50	Matching Roller ChairDMC166273	Fa,z (N)9,500	Fa,z (kg)950	-	-	App.pc.	Product wish list
Part No.DMPPS125-75	D (mm)140.0	D (")5	k (mm)154	k1 (mm)196	Insulation Thickness (mm)75	Matching Roller ChairDMC166323	Fa,z (N)9,500	Fa,z (kg)950	-	-	App.pc.	Product wish list
Part No.DMPPS150-25	D (mm)168.0	D (")6	k (mm)116	k1 (mm)146	Insulation Thickness (mm)25	Matching Roller ChairDMC166219	Fa,z (N)9,500	Fa,z (kg)950	-	-	App.pc.	Product wish list
Part No.DMPPS150-50	D (mm)168.0	D (")6	k (mm)142	k1 (mm)178	Insulation Thickness (mm)50	Matching Roller ChairDMC166273	Fa,z (N)9,500	Fa,z (kg)950	-	-	App.pc.	Product wish list
Part No.DMPPS150-75	D (mm)168.0	D (")6	k (mm)167	k1 (mm)209	Insulation Thickness (mm)75	Matching Roller ChairDMC166323	Fa,z (N)9,500	Fa,z (kg)950	-	-	App.pc.	Product wish list
