Excellent corrosion protection
Walraven BIS UltraProtect® 1000 is a unique support system that is suitable for indoor and outdoor use. Unique in terms of scope, composition and corrosion resistance, making it the most sustainable solution for fixing or supporting mechanical installations, solar systems and other types of installations. With the Walraven BIS UltraProtect® 1000 system, Walraven has obtained a leading position in the field of pipe fixing solutions!
The benefits of Walraven BIS UltraProtect® 1000:
- Extensive fixing system for indoor and outdoor applications;
- Suitable for corrosive environments (C1–C4 in accordance with ISO 12944-2);
- All applied surface treatments effortlessly withstand a salt spray test of at least 1000 hours (until the occurrence of maximum 5% red rust);
- The best alternative for hot dip galvanizing;

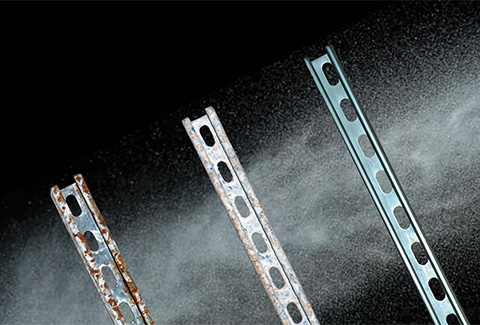

The alternative for hot dip galvanizing

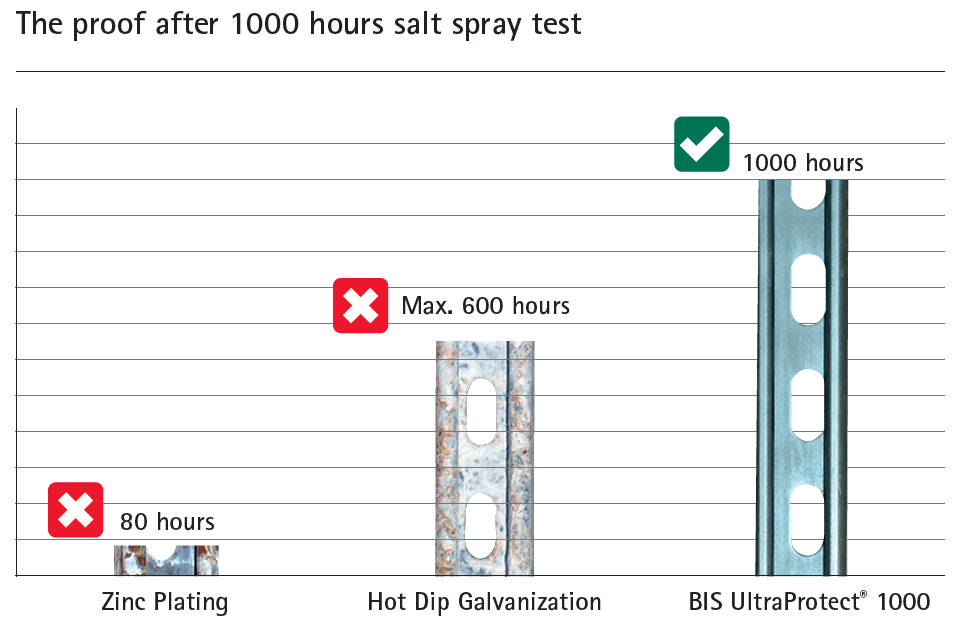

The products falling under the Walraven BIS UltraProtect® 1000 system have a high corrosion resistance. Effortlessly they withstand a salt spray test of at least 1000 hours (according to ISO 9227), where hot dip galvanized products withstand up to 300-600 hours).
Despite a relatively thin protective layer, the corrosion resistance is high. The products from the Walraven BIS UltraProtect® 1000 system not only feel smooth and have a beautiful finish, they also look optically attractive. An additional advantage of the relatively thin protective layer is that products with threaded holes or rod are also well protected against corrosion.
Extensive range
The Walraven BIS UltraProtect® 1000 system includes products for fixing pipes, air ducts, as well as various products for making load-bearing rail constructions such as solar panels and air-conditioning systems. As various Walraven RapidStrut® channel products are included in the system, speed and ease of installation are guaranteed!
Read more about our Walraven BIS UltraProtect® 1000 products
Walraven RapidStrut® Channel DS 5 (BUP1000)
- for a quick and easy fixing
- unique hole pattern, allowing BIS RapidStrut® Accessories to be mounted on both sides of the rail
- very high corrosion resistance (Walraven BIS UltraProtect® 1000)
Walraven RapidStrut® Hammerfix G2 (BUP1000)
- slide nut with stud bolt, washer and BIS RapidStrut® spring
- ready-to-use pre-assembled for a quick fixing, and retains assembly in place before final tightening
- material: metal parts made of steel 1.0332; spring(s) made of POM (polyoxymethylene), green
Walraven Heavy Duty Clamp HD500 (M16) (BUP1000)
- two-part clamp with two locking bolts
- heavy design
- bolts secured with anti-loss washer
Walraven Strut Tee-Bolt ‘U’ (BUP1000)
- slide nut with stud bolt and U-shaped washer
- U-shaped for extra stability
- ready-to-use pre-assembled
Walraven RapidStrut® Rail Connector 90° G2 (BUP1000)
- connector with pre-assembled BIS RapidStrut® Slide nut(s)
- to make fabrication with Strut Rail
- ready-to-use pre-assembled for a quick fixing, and retains assembly in place before final tightening
Walraven Strut Slide Nut (BUP1000)
- for all types of Strut Rail
- for tight fixing of accessories (e.g. connectors) on rail
- material: steel 1.0332
Walraven Yeti® 335 Support System
- modular supporting system for HVAC equipment, solar panels, walkways, pipe work, cable runs, etc.
- for flat roofs
- for horizontal and vertical applications
